Tech Specs
Light Source
PHILIPS MSD Silver 300 LL
Power: 300W
Lifespan: 3,000 hours
Color Temperature: 7800K
Movement
Pan: 540° (X-axis), Tilt: 270° (Y-axis)
3-phase motor with SY Brand
Magnetic positioning with XY-axis coding
Auto-repositioning after movement
Power Supply
Input Voltage: AC 100–240V, 50/60Hz
Power Consumption: 365W
Power Supply Rating: 550W
Output Voltage:
- V1: 36V (Master)
- V2: 12V (Cooling Fan)
- V3: 380V (Lamp)
Colors
1 color wheel with 14 fixed colors + white
Two-way rainbow effect
Excellent color macro and dynamic effects
Optics
Beam Angle: 0.6°–2°
145mm optical lens
Electric focusing system
Control
Control Panel: LCD Touch Pad
DMX Channels: 18 CH
Control Modes:
- DMX512
- Master–Slave
- Sound-Activated
- Self-propelled
- RDM
Signal Outlet: 3-pin XLR (5-pin optional)
RDM support
Cooling System
Advanced fan cooling
Over-temperature protection
Gobos
16 static gobos + open
Effect
Fog-compatible for enhanced beam visibility
Dual-chip strobe with variable speed
0–100% smooth linear dimming
Overheating protection & self-energy lamp protection
Dimmer/Strobe
0-100% smooth dimming
High-speed strobe effect with variable speed
Size & Weight
Dimension: 338 × 256 × 512 mm
Weight: 14 kg

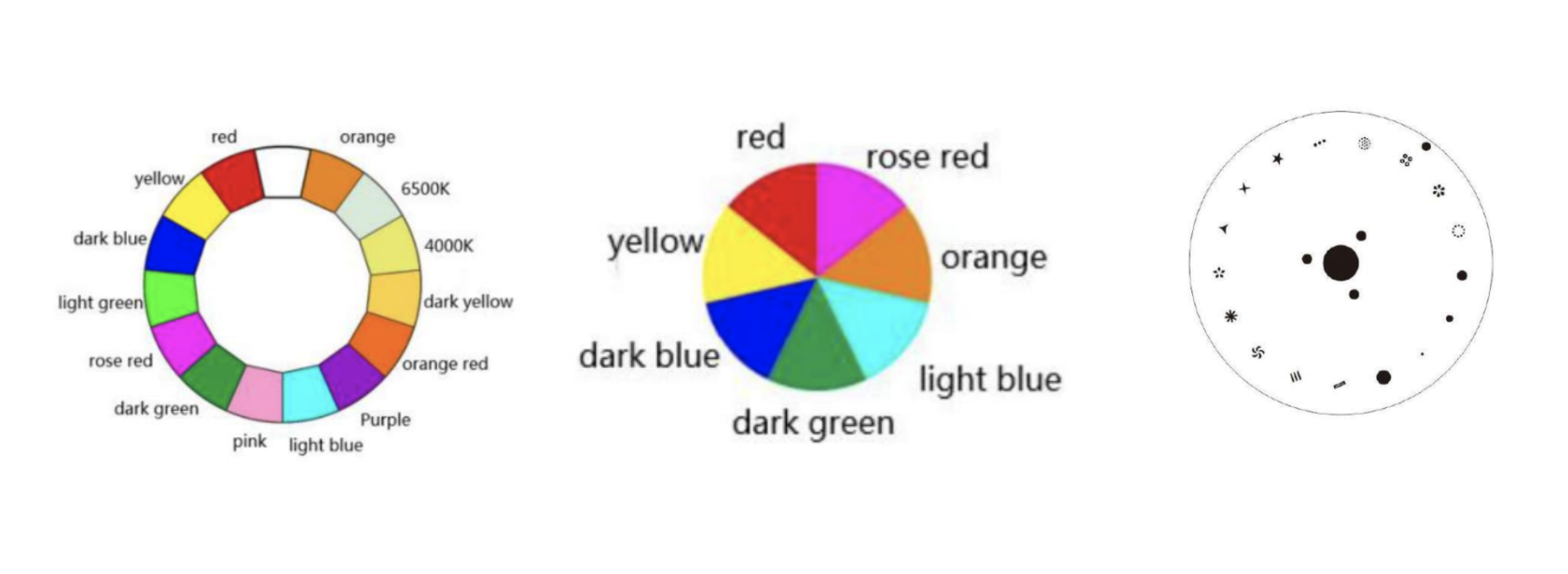

Gobo & Colors

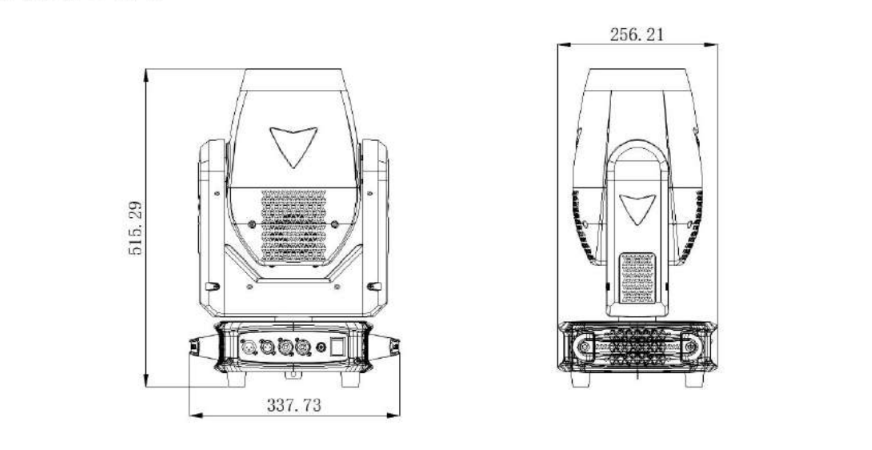

Architectural Dimension
Packaging
Flight Case
Box
