Tech Specs

Light Source

Semiconductor diode RGB laser projector Laser Power

20W Output

Red: 5600mW

Green: 6000mW

Blue: 8500mW

Power Supply

Voltage: AC 100–240V, 50/60Hz

Power Consumption: <300W

Control

Modes: DMX512, Master–Slave, Auto Mode

Protocol: DMX512

Channels: Configurable for professional use

Effect

Scanning System: OPT-40A

Speed: 40kpps ILDA@8°,

Max Angle: ±60°

Beam Divergence: 1.0mrad

Gobo & Colors

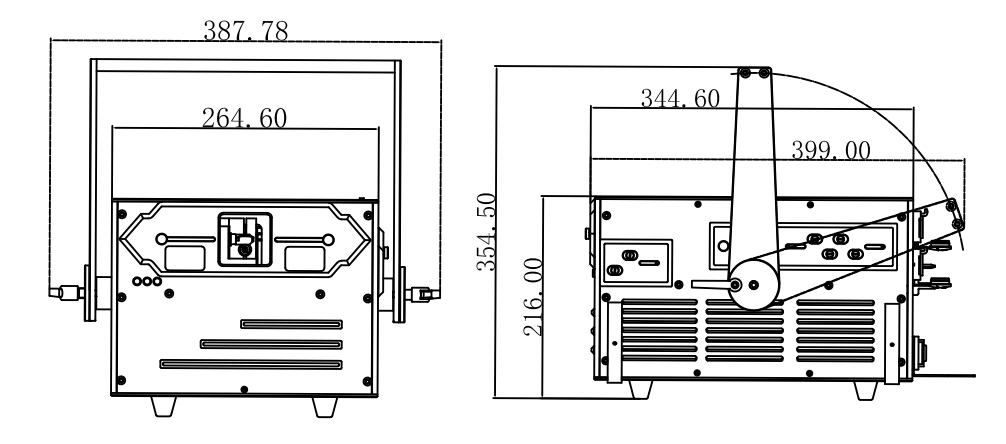

Architectural Dimension

Packaging

Flight Case

Box

Technical Documents

Filename
HADES XX - User Manual.pdf

Preview Video
