Tech Specs
Light Source
8 × 60W RGBW 4-IN-1 LEDs
Alternate Source: 8 × 30W 3-IN-1 SMD RGB LEDs
Flicker-free operation
Lifespan: 50,000 hours
Movement
Tilt: 220° (8/16-bit resolution)
Fast, smooth & quiet 2-phase motors
Position memory & auto repositioning
Power Supply
Voltage: AC100–240V, 50/60Hz
Power Consumption: 570W
Power Connector: PowerCON IN/OUT with fuse
Electronic supply with active PFC
Colors
4 colors RGBW mixed
Pixel mapping capability with each LED controllable individually
Linear CTO: 2500K–8000K
Optics
8 high-efficiency lens system
3.5° projection angle (sharp beam effect)
Diameter of Optic Lens: 97 mm
Control
Protocol: DMX512
Modes: Master/Slave, Sound Activation, Auto Run
RDM available (Remote Device Management)
Channel Modes: 2 / 5 / 17 / 126 DMX channels (USITT DMX-512)
Cooling System
Advanced fan cooling system
Over-temperature protection
Effect
Pixel mapping with individual LED control
Preset static & dynamic patterns
Strip effects with built-in macros
Sharp beam output
Random strobe effects
Dimmer/Strobe
0–100% smooth linear LED dimming
1–25 Hz strobe/shutter
Preset pulse & random strobe effects with variable speed
Size & Weight

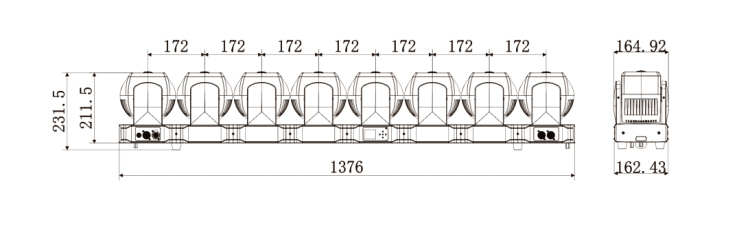

Dimensions: 164.92 × 1376 × 231.5 mm
Weight: 22.6 kg
Gobo & Colors
Architectural Dimension
Packaging
Cardboard Box
Box
